Travel Wheel Accessories
High Hardness RC Gear Reducer
High hardness RC hard gear reducer is a part of the travelling wheel block, with smooth transmission, low noise, strong versatility, easy to use and maintain, low maintenance cost.
High hardness RC hard gear reducer is a part of thetravelling wheel block, with smooth transmission, low noise, strong versatility, easy to use and maintain, low maintenance cost.
RC Gear Reducer Specification
Product Specification | 7~167 |
Gear Ratio | 1.3~289.74 |
Input Power | 0.09~160kW |
Output Torque | 2.8~22500N.m |

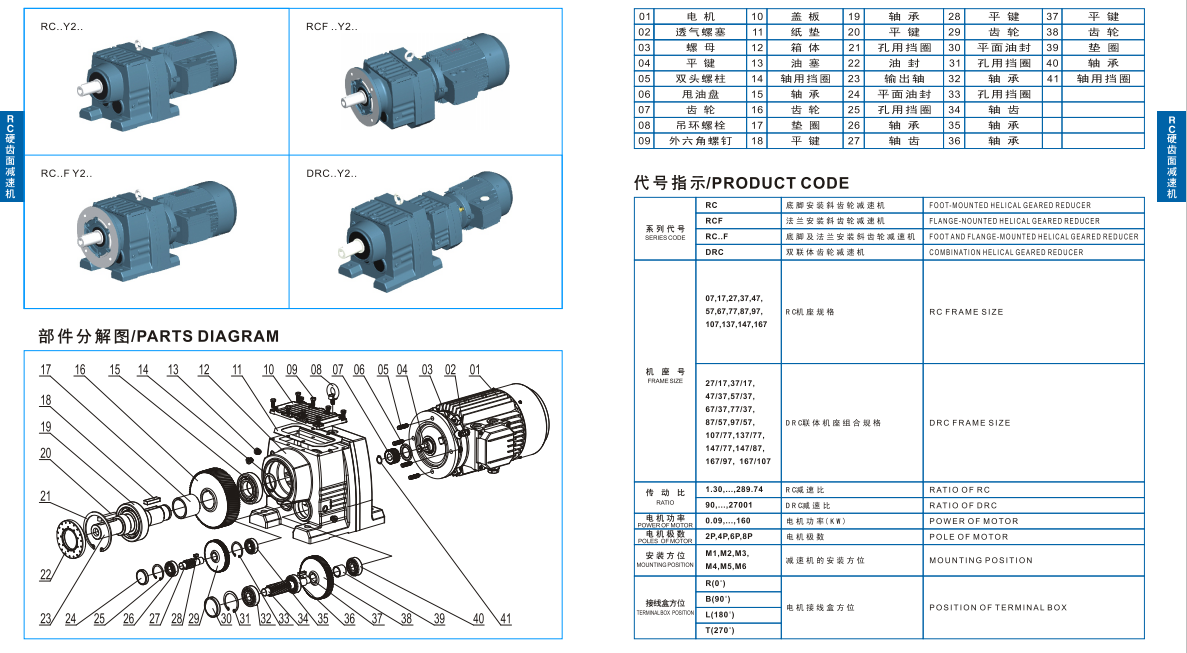

The Modular Design of RC Gear Reducer
1. The base models are densely packed and the transmission power range is large.
2. The shape design is suitable for a full range of universal installation configurations
3. The gears are ground and processed by a high-precision gear grinding machine, resulting in smooth transmission and low noise.
4. Specially designed for special low-speed occasions, the double reducer extends the transmission ratio of the reducer to 33818.
5. Using a new sealing device, it has good protection performance and strong environmental adaptability, and can work continuously in harsh environments such as corrosion and moisture.
6. Strong versatility, easy to use and maintain, low maintenance cost.
