SEW Bevel Gear Reducer
SEW bevel gear reducer suitable for installation space is narrow occasions. Rich installation forms ensure that the reducer can meet the needs of various applications. SEW bevel gear reducer are used in a wide range of industries, especially in various types of conveying and material processing equipment. Choose from foot-mount, flange mount or hollow shaft mount. The low backlash parallel-shaft helical gear reducer can be used for precise positioning control.
The superiority of SEW K Series Bevel Gear Reducer
1. High power density
2. Wear free design
3. Long service life
4. Multi-stage reducer to meet the needs of low speed
5. Full range can provide low backlash
K Series (Level 3)

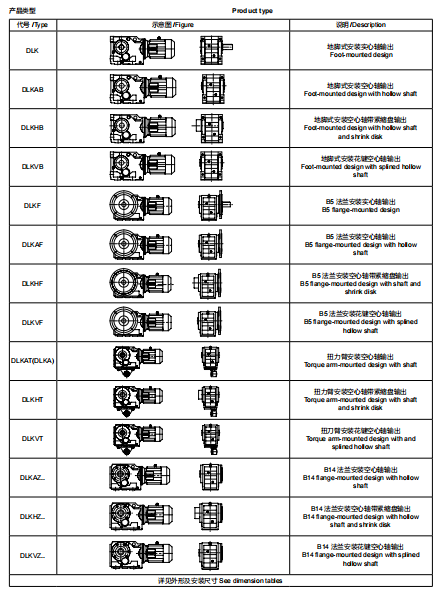

The helical - bevel gear reducer is an efficient DC shaft reduction motor suitable for high-torque, wear-resistant applications. Low backlash helical - bevel gear reducer can be used for precise positioning control.The following specifications are available:
1. Foot-mount or flange-mounted design
2. B5 or B14flange-mounted design
3. Hollow shaft or solid shaft
4. Hollow shaft：Single bond，shrink disc，spline，TorqLOC® hollow shaft
SEW K Series 3-stage Bevel Gear Reducer
1.The 3-stage bevel gear - bevel gear with high output torque, hollow or solid shaft, flange, Foot-mount or torque-arm mounting.
2.Transmission efficiency up to 98% with small size, light weight, low vibration, low noise
3.Output Speed: 0.1rpm - 522 rpm
4.Output Torque/Power: 200Nm - 50,000 Nm/ 0.12KW - 200 kW
5.Frame Size
:K37,K47,K57,K67,K77,K87,K97,K107,K127,K157,K167,K187
KS37,KS47,KS57,KS67,KS77,KS87,KS97,KS107,KS127,KS157,KS167,KS187
KA37,KA47,KA57,KA67,KA77,KA87,KA97,KA107,KA127KA157,KA167,KA187
KF37,KF47,KF57,KF67,KF77,KF87,KF97,KF107,KF127,KF157,KF167,KF187
KAF37,KAF47,KAF57,KAF67,KAF77,KAF87,KAF97,KAF107,KAF127,KAF157,KAF167,KAF187
KAT37,KAT47,KAT57,KAT67,KAT77KAT87,KAT97,KAT107,KAT127,KAT157,KAT167,KAT187,KAZ37,KAZ47
KAZ57,KAZ67,KAZ77,KAZ87,KAZ97,KAZ107,KAZ127,KAZ157,KAZ167,KAZ187
