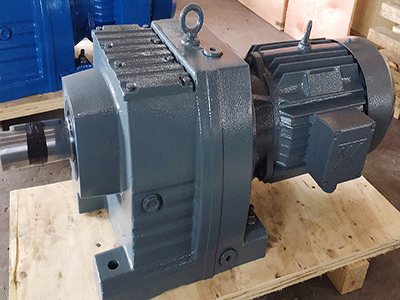

SEW R Series Helical Gear Motor

SEW R series helical gear motor covers 6 specifications of single-stage helical gear motor and 14 specifications of 2-stage, 3-stage helical gear motor, R series helical gear motor perfectly meets the requirements of power and installation space.

SEW R Series Helical Gear Motor Advantage

 • High power density

 • Long service life

 • Low backlash is available from R37 to R167

 • RM series, specially designed for mixing applications　　

R Series Helical Gear Motor Specifications　　

 • Single or multistage gearing　　

 • Footing mounting　　

 • Flange mounting　　

 • Foot flange mounting　　

 • Flange mounting with reinforced bearing box

SEW R series Helical Gear Motor Type

SEW R series helical gear transmission efficiency up to 98%, with low vibration, low noise, solid shaft, flange or foot installation advantages, can be used as a multi-stage reducer input stage part.

Output Speed: 0.05rpm - 1829rpm

Output Torque/Power: 50Nm - 18,000 Nm/ 0.09KW - 160 kW

Frame Size :R37,R47,R57,R67,R77,R87,R97,R107,R137,R147,R167

RS37,RS47,RS57,RS67,RS77,RS87,RS97,RS107,RS137,RS147,RS167

RF37,RF47,RF57,RF67,RF77,RF87,RF97,RF107,RF137,RF147,RF167

RX37,RX47,RX57,RX67,RX77,RX87,RX97,RX107

RXF37,RXF47,RXF57,RXF67,RXF77,RXF87,RXF97,RXF107
