Modular Demag Wheel Block With Geared Motor

Modular Demag wheel block is a kind of walking mechanism designed for industrial applications, which adopts the modular design concept, allowing users to select different components for combination according to the specific application needs. This design provides a high degree of flexibility and customization, enabling the wheel block to adapt to a wide range of working environments and load requirements.

Components ＆ Configurations

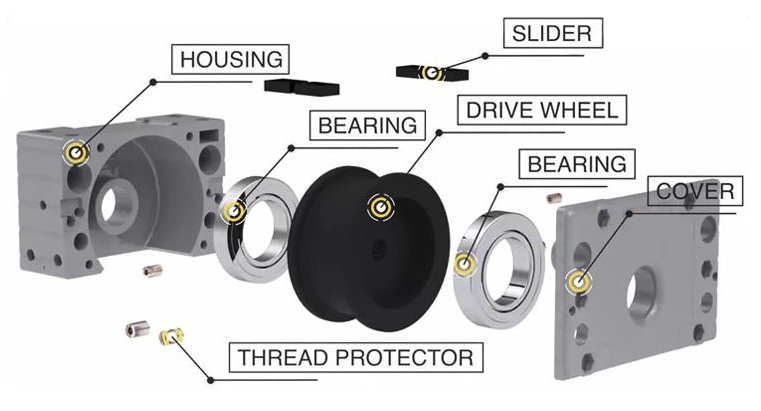

The shape of the DRS travelling wheel block presents a square shape, and each component works with each other to form a complete travelling wheel block device. The main configurations of the Demag wheel block include :housing,slider,double bearings,drive wheel,thread protector and cover.

Sizes

Demag wheel sets have 112mm, 125, 160, 200, 300, 400, 500 and other kinds of wheel diameters, which use advanced European design ideas ,greatly improving the working performance and extend the working life.

Wheel Type

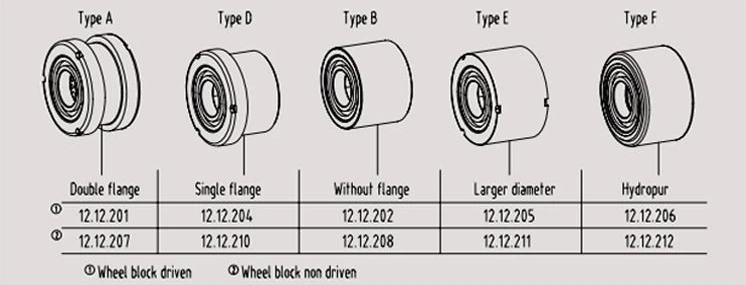

This versatile system offers the best performance ratio, maximum load capacity (2.75 to 40 tons). The finely graded sizes (DRS 112 to DRS 500) ensure that the right device is selected for the appropriate application. According to the wheel type, the travelling wheel can be divided into three types: single flange, double flange and no flange.

Product Features

1, Fully enclosed design, life-long maintenance free.

2, Spheroidal graphite cast iron wheel with self-lubricating function, wear resistance,designed service life of ten years.

3, Modular block, large carrying capacity, light running sound.

4, Drive wheel spline hub, spline connection reducer motor, compact structure, reasonable design.

5, Five sides polishing, convenient structure connection, to ensure installation accuracy.

6, Greatly simplifies the design cost and time of the customer's walking mechanism.
