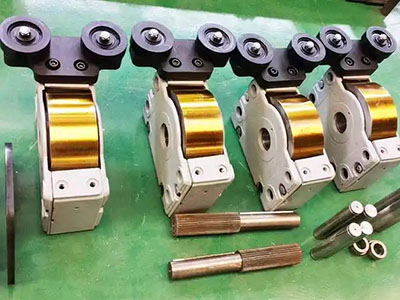

DRS Spline Shaft Drive Wheel Block Assembly

At the core of the DRS assembly is its high-strength spline shaft, crafted from hardened steel to withstand extreme torque and rotational forces. The spline’s precision-machined grooves ensure seamless engagement with mating components, minimizing wear and maximizing power transfer efficiency. Paired with a reinforced wheel block, the assembly offers exceptional load-bearing capacity, supporting radial and axial stresses in demanding environments.

The modular design allows for easy installation and maintenance, reducing downtime in critical operations. Additionally, the wheel block’s sealed bearings and corrosion-resistant coatings enhance longevity, even in harsh conditions like high humidity, dust, or temperature fluctuations.

Applications across industries

The versatility of the DRS spline shaft drive wheel block assembly makes it indispensable for:

Automotive systems: Steering mechanisms, conveyor belts, and robotic assembly lines.

Industrial machinery: CNC equipment, packaging systems, and material handling units.

Aerospace and defense: Landing gear actuators and precision control systems.

Technical specifications

Torque capacity: Up to 1,200 nm

Spline shaft material: Case-hardened 4140 steel

Load rating: Dynamic loads up to 8,000 lbs

Temperature range: -40°F to 300°F (-40°C to 150°C)

Customization: Available in multiple shaft diameters (10mm–50mm) and spline configurations.

Why choose the DRS assembly?

Unlike traditional keyway shafts, the DRS spline shaft drive eliminates backlash and slippage, ensuring consistent performance under variable speeds. Its compact, lightweight structure also reduces energy consumption while maintaining operational accuracy. Backed by rigorous testing and iso-certified manufacturing, this assembly guarantees reliability for mission-critical applications.

Conclusion

For engineers seeking a robust, high-efficiency solution for power transmission challenges, the DRS spline shaft drive wheel block assembly stands out as a future-ready investment. By prioritizing precision, durability, and adaptability, it sets a new benchmark in mechanical drive systems—empowering industries to achieve peak productivity with minimal maintenance.
