Non-marking ATLAS-RB 160 Wheel Block System

The ATLAS-RB 160 wheel block is a travelling wheel block from Karl Georg for a variety of industrial applications, especially those requiring high load capacity and precise operation. Here are some of the key features and applications of the RB 160 Wheel Block:

Features

 • High load capacity: The RB 160 Wheel Block is capable of carrying loads of up to 6,800 kg.

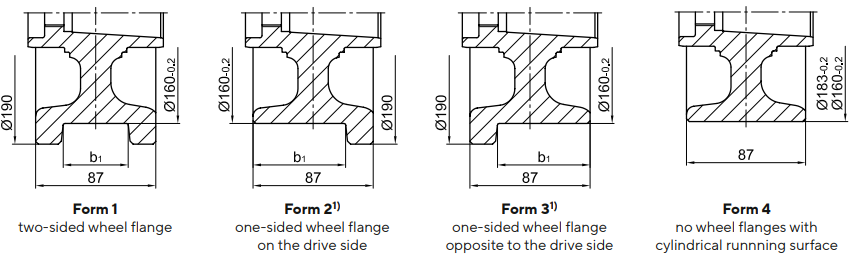

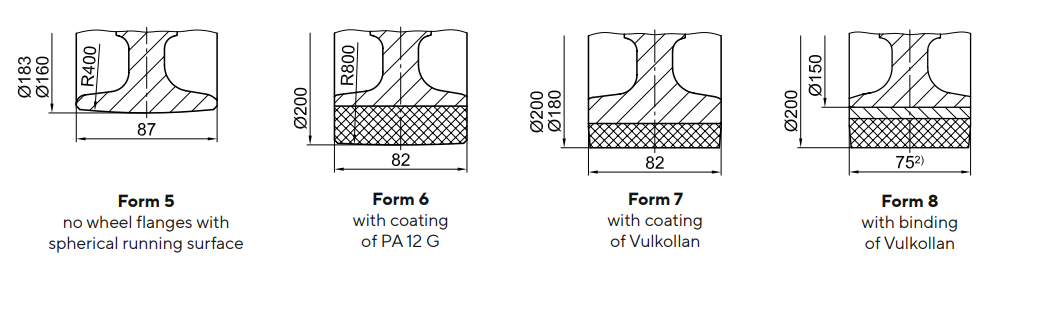

 • Multiple design forms: A variety of design forms are available, including two-sided wheel flange (Form 1), one-sided wheel flange on the drive side or  opposite to the drive side(Form 2 and Form 3), and no wheel flanges with cylindrical runnning surface (Form 4), rimless and no wheel flanges with spherical running surface(Form 5), etc.
 • Material options: A variety of material options including PA 12G coating, Vulkollan coating and Vulkollan coating are available to suit different working environments and needs.

 • Easy maintenance: Due to self-lubricating self-aligning roller bearings, the RB 160 Wheel Block has relatively low maintenance requirements.

 • Temperature adaptability: The design allows operation in a wide temperature range, from minus 30℃ Celsius to 90 ℃ Celsius above zero, and can withstand 120 degrees Celsius above zero for instant operation.

Install Fittings

 • Top connection：Top connection fittings KA 160.1 and KA 160.2 are available, bolted and suitable for mounting directly on welded structures.

 • Pin Attachment：Pin connection accessories BA 160.1, BA 160.2 and BA 160.3 are available for use in steel structures with hollow sides for easy clearance adjustment.

 • Side Connection: Side connection accessory WA 160 is available for low structure design, side connection can be selected.

Application

The ATLAS-RB 160 Wheel Block is widely used in cranes, conveyor systems, heavy machinery, automated warehouses and other applications requiring high load capacity and precise control.
